Replacement Base Harness GM LS GEN3/4 Kabelbaum für LS1 LS2 LS3 LS6 LS7 Motoren
101-0300
Replacement Engine Harness to cover a wide range of GM LS Engine Variations. Please note that due to the large number of Engines supported it may require user modification for some applications, see Installation Manual or Contact Links Tech Support team to confirm suitability for your Engine.
PCLink start up MAPs available for both Gen3 and Gen4 LS (See below for download)
Engines Supported
Gen 3 LS1/LS6
Gen 4 LS2/LS3/LS7*
Compatible ECUs
G4X StormX (Cable Operated Throttle Body)
G4X XtremeX (Cable Operated and Drive-by-Wire Throttle Body)
See features tab and installation manual for further details.
*Notes for use with Gen 4 Engines
1. A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
2. A small modification is required to the crank sensor connector. See “crank connector” section in installation manual for
details.
3. Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN
101-0287
4. To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
5. To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link
MAP sensor which is directly supported by the harness)
If you require a fuse box and relay, please purchase 101-0310 in addition.
899,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 1 - 3 Tage Lieferzeit1
Link Dual Core Kabel
101-0033
10m - Dual core screen cable for use
with trigger signals and knock sensors
49,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1
Link XS Expansion Loom (XSL)
101-0106
Want to add additional inputs/output to your Link Plugin ECU? Use the XS Loom. The Link XS Loom plugs into the expansion connector on all Link G4, G4+ and G4X plug-in ECUs. The number of extra inputs and outputs added by the XS Loom is dependent on the Plugin ECU. For specific details check the plug-in ECUs specifications.
Common applications include but are not limited to:
- Boost adjustment knob or switch
- Wide-band AFR/Lambda
- Oil Pressure Sensor
- Fuel Pressure Sensor
- Inlet Air Temperature (IAT) sensor
- Map switch (Different tunes available via toggle switch)
The XS Loom is 2.5m long and uses 20AWG wire.
59,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1

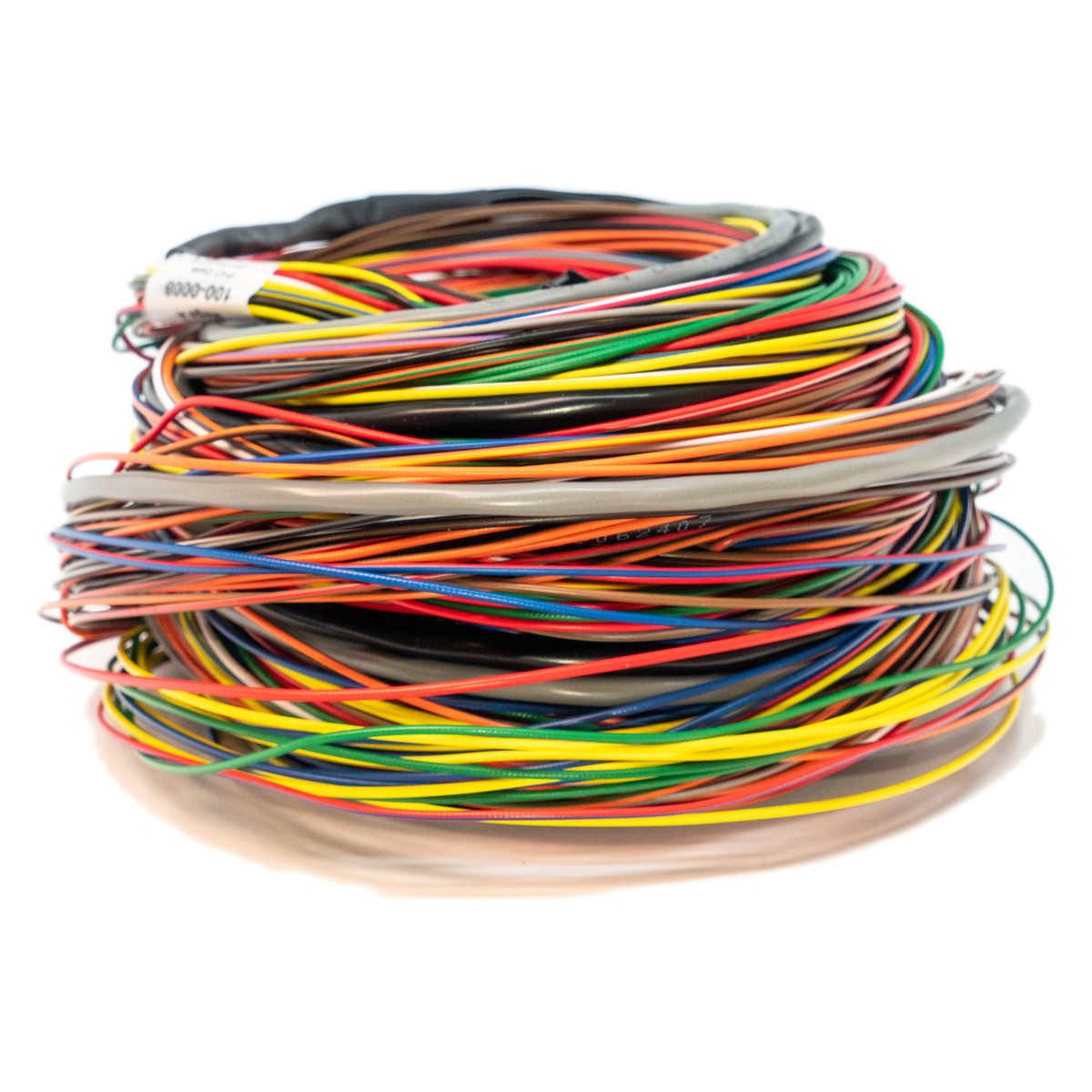

Link A Loom Long (5LA)
101-0008
5 m long 'A' loom to suit G4, G4+ and G4X ECUs
Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘A’ Loom has a Link ‘A’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 0.4m and 2.5m lengths.
Added features of 2.5m and 5m ‘A’ Looms include:
- Shielded Dual Core wires for trigger signals
- Added ground and 5V wires spliced in with labels suggesting pin use
Suitable for:
- All Link G4X WireIn ECU’s (Note: Loom B will also be required for the Storm/Fury/Xtreme)
- Link G4+ Atom (NB: Does NOT suit the earlier G4 Atom models. I.e. G4+ only)
- Link G4+ Atom II
- Link G4+ Monsoon
- Link G4 Storm
- Link G4+ Storm Blue
- Link G4+ Storm Black (Note: Loom B will also be required)
- Link G4 RX
- Link G4+ Fury (Note: Loom B will also be required)
- Link G4 Xtreme (Note: Loom B will also be required)
- Link G4+ Xtreme (Note: Loom B will also be required)
- Link G4+ Thunder (Note: Loom B and connector kits C and D may also be required)
- Vipec V44
- Vipec i44
- Vipec V88 (Note: Loom B will also be required)
- Vipec i88 (Note: Loom B will also be required)
229,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1
Link A Loom Medium (2LA)
101-0005
2.5 m long 'A' loom to suit G4, G4+ and G4X ECUs
Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘A’ Loom has a Link ‘A’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 0.4m and 5m lengths.
Added features of 2.5m and 5m ‘A’ Looms include:
-Shielded Dual Core wires for trigger signals
-Added ground and 5V wires spliced in with labels suggesting pin use
Suitable for:
- All Link G4X WireIn ECU’s (Note: Loom B will also be required for the Storm/Fury/Xtreme)
- Link G4+ Thunder (Note: Loom B and connector kits C and D may also be required)
- Link G4+ Atom (NB: Does NOT suit the earlier G4 Atom models. I.e. G4+ only)
- Link G4+ Atom II
- Link G4+ Monsoon
- Link G4 Storm
- Link G4+ Storm Blue
- Link G4+ Storm Black (Note: Loom B will also be required)
- Link G4 RX
- Link G4+ Fury (Note: Loom B will also be required)
- Link G4 Xtreme (Note: Loom B will also be required)
- Link G4+ Xtreme (Note: Loom B will also be required)
- Vipec V44
- Vipec i44
- Vipec V88 (Note: Loom B will also be required)
- Vipec i88 (Note: Loom B will also be required)
189,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1
Link A Loom Short (0LA)
101-0002
0.4m long 'A' loom to suit G4, G4+ and G4X Wire-In ECUs
Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘A’ Loom has a Link ‘A’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 2.5m and 5m lengths.
Suitable for:
- All Link G4X WireIn ECU’s (Note: Loom B will also be required for the Storm/Fury/Xtreme)
- Link G4+ Atom (NB: Does NOT suit the earlier G4 Atom models. I.e. G4+ only)
- Link G4+ Atom II
- Link G4+ Monsoon
- Link G4 Storm
- Link G4+ Storm Blue
- Link G4+ Storm Black (Note: Loom B will also be required)
- Link G4 RX
- Link G4+ Fury (Note: Loom B will also be required)
- Link G4 Xtreme (Note: Loom B will also be required)
- Link G4+ Xtreme (Note: Loom B will also be required)
- Link G4+ Thunder (Note: Loom B and connector kits C and D may also be required)
- Vipec V44
- Vipec i44
- Vipec V88 (Note: Loom B will also be required)
- Vipec i88 (Note: Loom B will also be required)
99,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1
Link B Loom Long (5LB)
101-0009
Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘B’ Loom has a Link ‘B’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 0.4m and 2.5m lengths.
Added features of 2.5m and 5m ‘B’ Looms include:
-Shielded Dual Core wires for knock signals
Suitable for:
- Link G4X Storm (Loom A also required)
- Link G4X and G4+ Fury (Loom A also required)
- Link G4X, G4+ and G4 Xtreme (Loom A also required)
- Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required)
- Link G4+ Storm Black (Loom A also required) – Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models
- Vipec V88 (Loom A also required)
- Vipec i88 (Loom A also required)
229,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1
Link B Loom Medium (2LB)
101-0006
Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘B’ Loom has a Link ‘B’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 0.4m and 5m lengths.
Added features of 2.5m and 5m ‘B’ Looms include:
-Shielded Dual Core wires for knock signals
Suitable for:
- Link G4X Storm (Loom A also required)
- Link G4X and G4+ Fury (Loom A also required)
- Link G4X, G4+ and G4 Xtreme (Loom A also required)
- Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required)
- Link G4+ Storm Black (Loom A also required) – Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models
- Vipec V88 (Loom A also required)
- Vipec i88 (Loom A also required)
189,00 €
inkl. MwSt, versandkostenfrei in bestimmte Länder
Versandkostenfrei in folgende Länder: Deutschland
- Verfügbar/Available
- 3 - 5 Tage Lieferzeit1
Link B Loom Short (0LB)
101-0003
Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘B’ Loom has a Link ‘B’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 2.5m and 5m lengths.
Suitable for:
Link G4X Storm (Loom A also required)
Link G4X and G4+ Fury (Loom A also required)
Link G4X, G4+ and G4 Xtreme (Loom A also required)
Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required)
Link G4+ Storm Black (Loom A also required) – Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models
Vipec V88 (Loom A also required)
Vipec i88 (Loom A also required)
99,00 €
